自動稱重包裝機

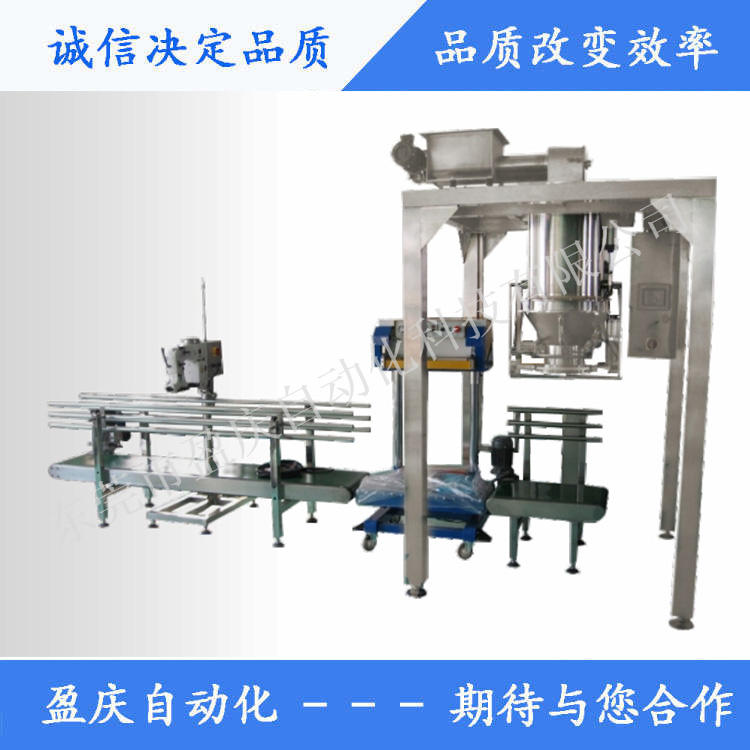

自動稱重包裝機機型二

自動稱重包裝機簡要說明 Descriptive Abstract

該系列自動定量包裝秤主要構成部件有：進料機構、稱重機構、氣動執行機構、夾袋機構、除塵機構、電控部分等組成的一體化自動包裝系統。該系統設備通常用于固體顆粒狀物料以及粉末狀物料進行快速、恒量的敞口袋定量稱重包裝，如大米、豆業、奶粉、飲料、金屬粉末、塑料顆粒及各種化工原料。

Automatic fixed-quantity packaging style of this series including feeding-in,weighing,pneumatic actuatoring,bag-clamping,dusting, electrical-controlling etc incorporate automatic packaging system.. This system normally used in high-speed, constant of the open pocket etc fixed-quantity weighing packing for solid grain material and powder material; for example rice, legume, milk powder, feedstuff, metal powder, plastic granule and all kinds of chemical raw material.



自動稱重包裝機主要特征

1、由PLC、觸摸屏和稱重系統構成控制核心，最大限度地提高了機器的稱重控制精度和穩定性；

2、整機除機架外其余均為304不銹鋼制成，能夠適用于腐蝕性化工原料；

3、集中除塵，車間無粉塵污染，殘料清洗方便，可用水沖洗；

4、氣動夾袋器，密封性好，大小可進抵，能夠適應多種尺寸包裝袋；

5、可選喂料方式：雙螺旋、雙振動、雙速自由落料；

6、加配皮帶輸送機、縫包機、折邊機或熱合機等可以成為成套包裝系統。



 Main Features

1.PLC, Touch screen & Weighing system control. Maximize the accuracy of weighing and stability.

2.Whole machine is made of stainless steel 304, suit for causticity chemical raw material.

3.Dust Concentration, no powder pollution in the workshop, rest material cleaned convenient, rinse with water.

4.Changeable pneumatic grip, tight sealing, fit for all size of shape.

5.Alternative feeding method; dual helix, dual vibration, dual-speed free blanking.

6.With belt-conveyor, joint charter, folding machine of heat sealing machine ect can be a complete packing system.



自動稱重包裝機主要參數 Main Technical Data



型號/Mode	YQ-PF-C11	YQ-PF-C12	YQ-PF-C13
計量方式/Dosing Mode	毛重式稱重 Gross weight mode Weighing	稱量箱稱重 Weighing hopper weighing	雙稱量箱稱重 Twin Weighing~hopper weighing
包裝重量/Packing Weight	5~25kg (加大型10~50kg) 5~25kg (Enlarged 10~50kg)	5~25kg (加大型10~50kg) 5~25kg (Enlarged 10~50kg)	5~25kg (加大型10~50kg) 5~25kg (Enlarged 10~50kg)
包裝精度/Packing Weight	≦±0.2%	≦±0.2%	≦±0.2%
包裝速度/Packing Speed	≧3包/ 分 ≧3 bags per min	≧6包/分 ≧6 bags per min	≧12包/分 ≧12 bags per min
電源/Power Supply	3P AC208~415V 50/60Hz	3P AC208~415V 50/60Hz	3P AC208~415V 50/60Hz
整機功率/Total Power	2.25kw	2.5KW	3.1 KW
壓縮空氣/Air Supply	6 kg/cm 0.5m3/min	6 kg/cm 0.5m3/min	6 kg/cm 0.5m3/min
整機重量/Total Weight	600kg	800kg	1300kg
整機體積/Overall Dimensions	4500*1500*2500mm	4800*1500*3000mm	5300*2000*3800mm
